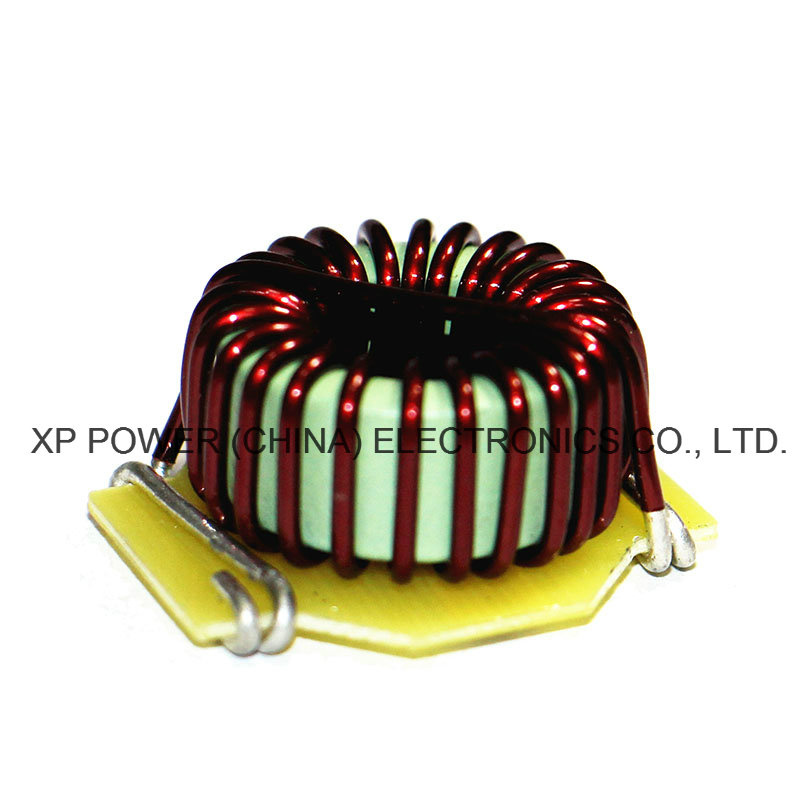

RoHS Complicated Three Phase Choke Coil Inductors|Air Condition Use Choke Coils

Name: RoHS Complicated Three Phase Choke Coil Inductors|Air Condition Use Choke Coils
Brand: all-electronics-online.com
SKU: 707660432
Availability: InStock
Rating: 4.5 (92 reviews)

Price:	US $ 0.28-0.33/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Features
1. Separated windings for minimum interwinding capacitance
2. Single layer windings for highest common mode impedance over the widest frequency range
3. Suitable for 50Hz to 500 KHz
4. Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
5. All materials used are UL94-VO recognized
6. Operating temperature: -55ºC to +105ºC
7. Available in either vertical or horizontal mount
8. Available in vertical header mount for ease in PCB assembly
9. Easy FR-4 board mounting Good vibration resistance

Application
1. Low Frequency AC Reactor
2. Solar Power System
3. Power Conditioning System
4. Wind Power System
5. Automatic Drive Machine
6. Induction Heater
7. Welding Machine
8. Paper Industries
9. RFI Suppression Choke
10. DC/DC converters
11. IP and OP devices

Physical and Electrical Performance Parameters

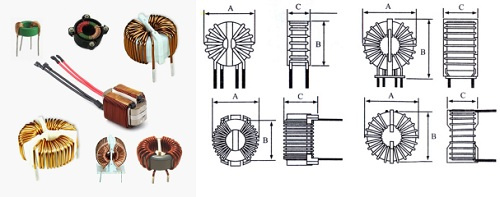

Part NO.	Inductance(mH) @1 KHz	IDC(A) (Max)	DCR(mΩ) (Max)	Mounting	Dimension(mm) Coil size A×B×C
220-65-23.5	0.065	23.5	0.9	Vertical	26×26×18
220--100-19	0.100	19.0	1.3	Vertical	28×26×18
220-180-15	0.180	15.0	2.5	Vertical	28×26×20
220-470-12	0.470	12.0	4.0	Vertical	28×26×18
220-880-9	0.880	9.0	6.5	Horizontal	28×30×20
220-1000-3.2	1.000	3.2	15.3	Vertical	26×26×17
220-1180-7.5	1.180	7.5	12.5	Horizontal	26×28×20
220-1500-2	1.500	2.0	18.0	Vertical	26×26×18
220-1800-5	1.800	5.0	50.0	Horizontal	26×28×18
220-2200-5	2.200	5.0	40.0	Vertical	26×26×19
250-200-15	0.200	15.0	5.0	Horizontal	30×28×15
250-200-18	0.200	18.0	5.0	Vertical	30×28×15
250-300-15	0.300	15.0	7.3	Horizontal	30×32×18
250-300-15A	0.300	15.0	7.3	Vertical	38×28×17
250-425-8	0.425	8.0	4.26	Vertical	32×30×21
250-600-9	0.600	9.0	10.0	Horizontal	30×30×18
250-600-9A	0.600	9.0	10.0	Vertical	30×28×19
250-1000-8	1.000	8.0	20.0	Vertical	30×28×13
250-3500-1.5	3.500	1.5	80.0	Horizontal	30×32×16
250-3700-4	3.700	4.0	70.0	Vertical	30×32×17

Part NO.	Inductance(mH) @1 KHz	IDC(A) (Max)	DCR(mΩ) (Max)	Mounting	Dimension(mm) Coil size A×B×C
310-100-30	0.100	30.0	3.0	Horizontal	38×40×18
310-100-30A	0.100	30.0	3.0	Vertical	36×36×15
310-150-20	0.150	20.0	3.4	Horizontal	36×36×16
310-150-20A	0.150	20.0	3.4	Vertical	38×38×18
310-150-30	0.150	30.0	3.5	Vertical	38×38×19
310-200-15	0.200	15.0	5.0	Vertical	38×38×18
310-200-18	0.200	18.0	5.0	Horizontal	38×38×19
310-280-13	0.280	13.0	2.9	Vertical	28×26×18
310-580-13	0.580	13.0	10.0	Vertical	38×38×18
310-7200-2.5	7.200	2.5	93.0	Horizontal	38×40×18
310-11000-1.5	11.000	1.5	184.0	Vertical	40×40×19

Prod Model:	XP-CMC-3001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Choke Inductor
Structure:	Core
Brand:	XP Power

XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.

The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.

XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
